Intersection check

The application offers a detail check function for ensuring that there are no intersections between details that could cause problems later during assembly. The checks can also be run on other AutoCAD objects (3DSolid, Mass Element) – this enables users to see potential intersections with existing concrete or metal frames and other non-element structural details.

When the check is run, all intersections in the model are marked, after which the user can inspect each intersection. Users can also define a maximum intersection volume to exclude so-called micro-intersections that are practically insignificant and unproblematic.

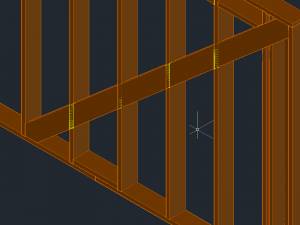

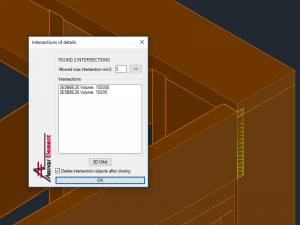

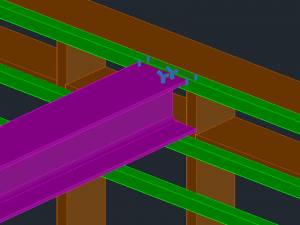

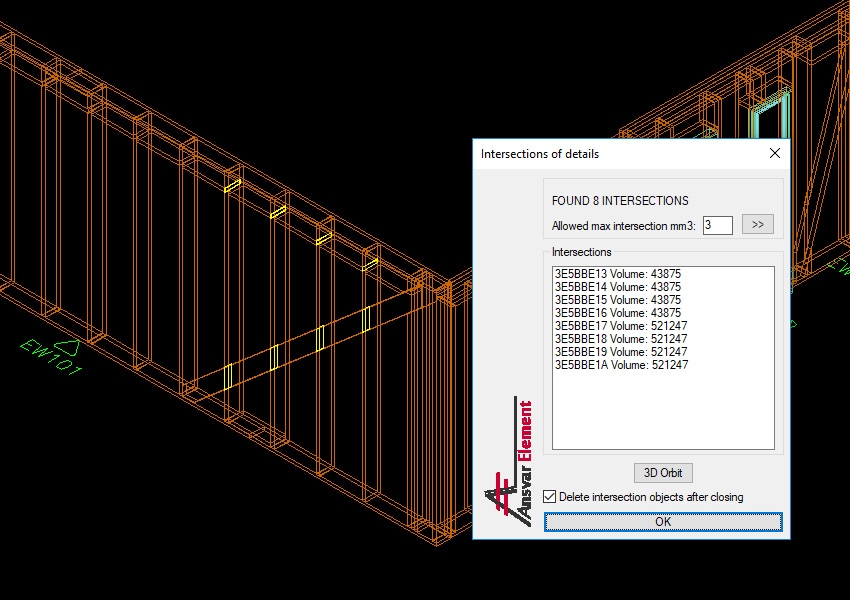

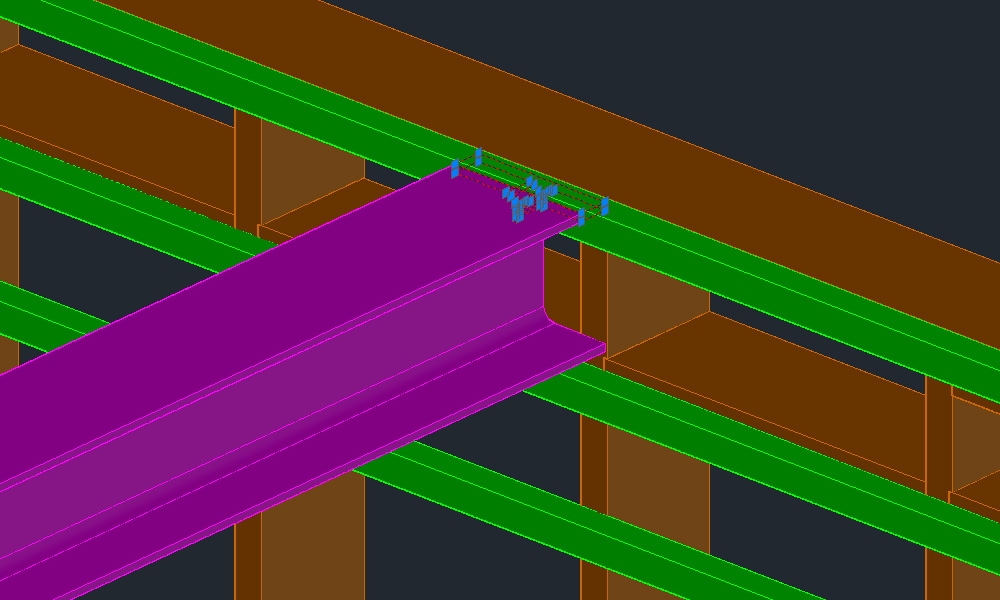

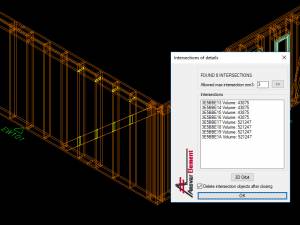

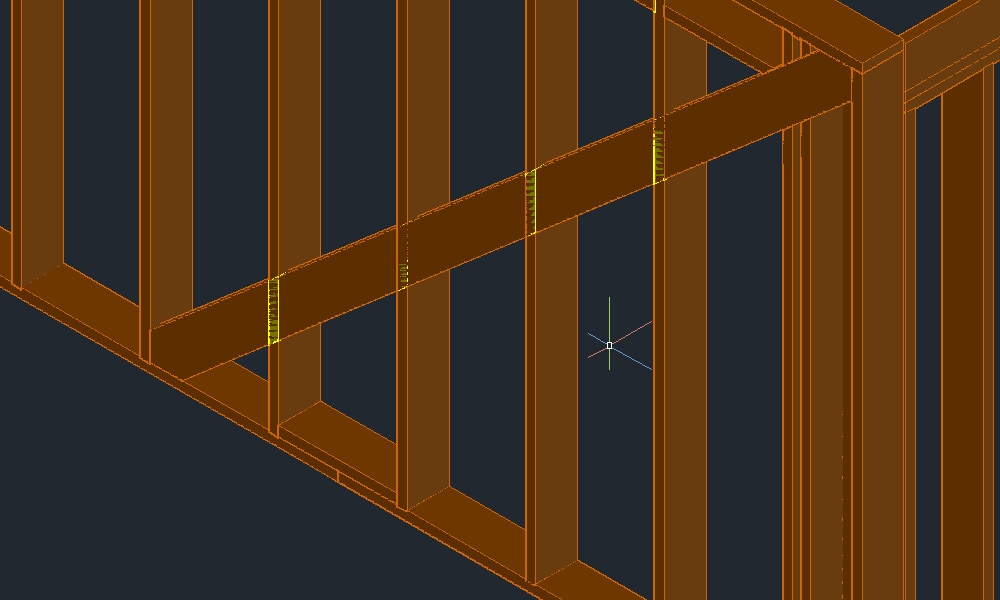

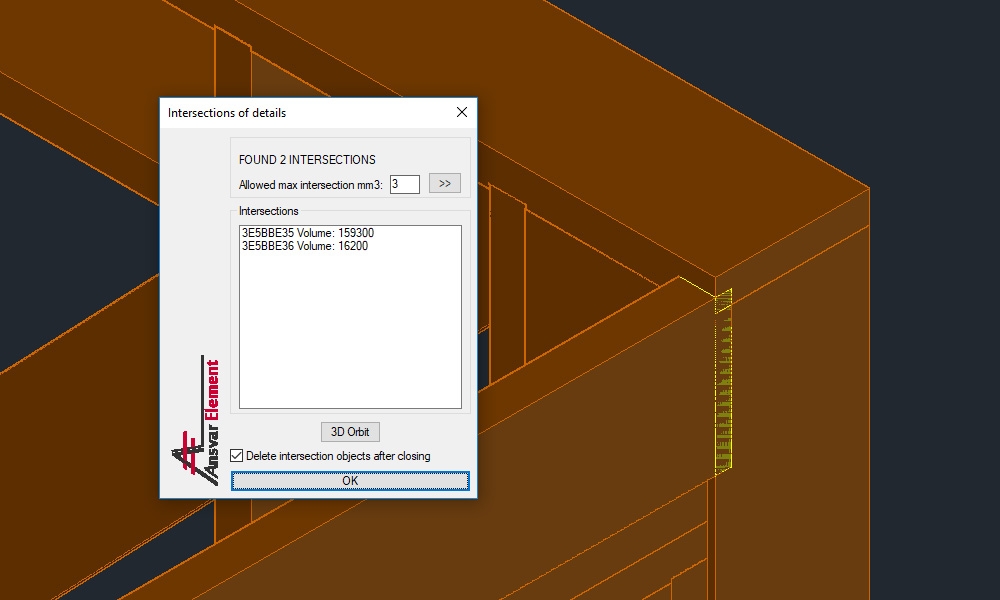

The result of the check Locations of interferences Locations of interferences The result of the check
