Detail shop drawings

After completing the element model, in addition to element drawings it is also possible to generate detail drawings. This is primarily intended for details with special cuts, where the cross-sections and lengths defined in the specification are not sufficient.

The user can select the number of views displayed for each detail. Drawings can be generated for all details or optionally only for details with cuts. The latter option helps reduce the number of drawings, as generally there is no need for drawings of details that have no cuts. Elements and layers where detail drawings are required can also be selected automatically. This eliminates the need to find and select details manually in the model.

Automatic drawing generation is even available for element-external details; however, in that case the detail must be selected manually. Drawings can be generated for both Mass Elements and 3DSolids.

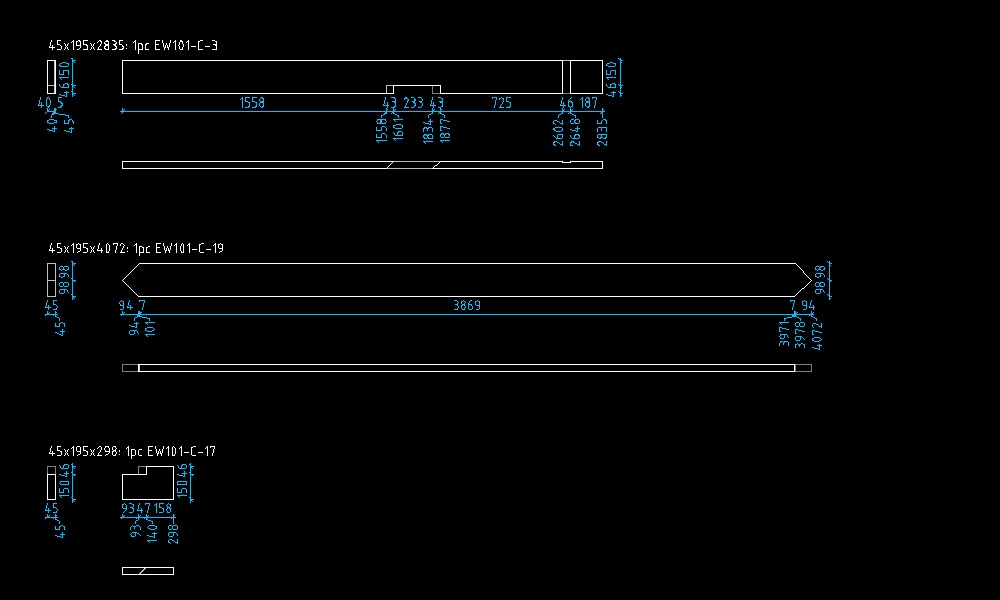

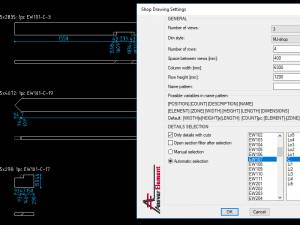

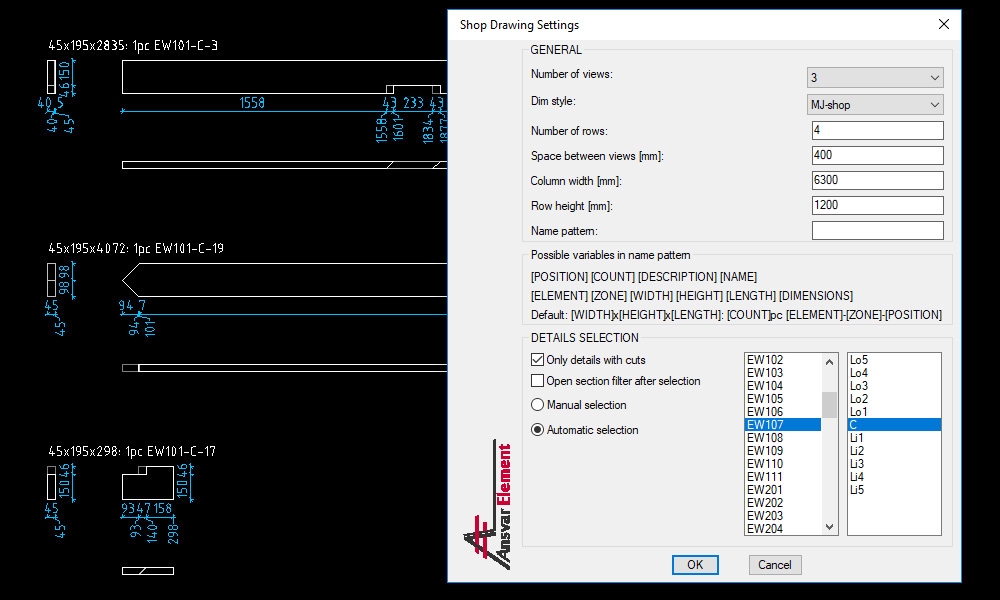

Drawings of details Drawing settings
